II. 3D Model of Tactile Sensor Metal Housing

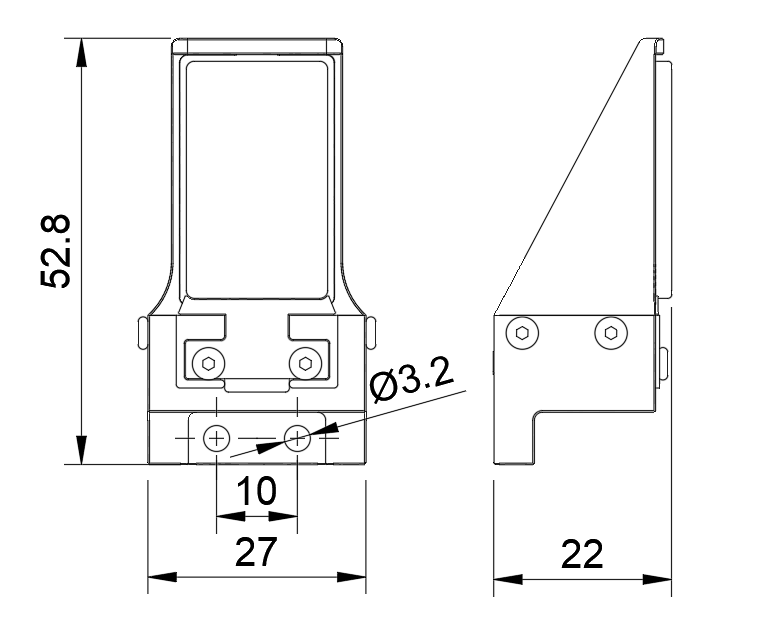

1. External Dimensions of WS Sensor

Initial Software Setup — Figure 1

Software Initial Setup — Figure 2

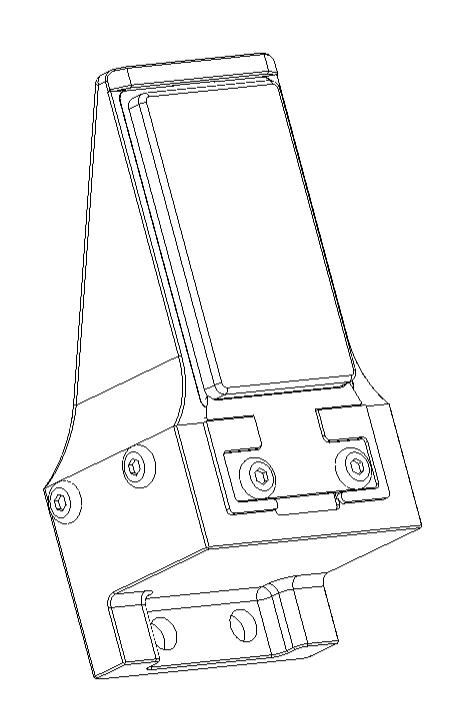

WS Sensor Model.stp

3D Model File・STP Format

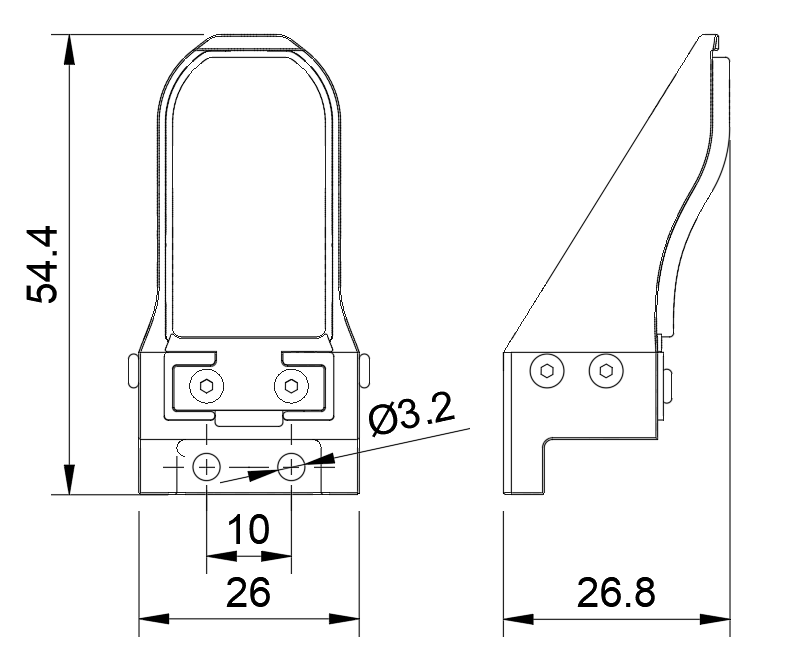

2. External Dimensions of OS Sensor

Software Initial Setup — Figure 3

Software Initial Setup — Figure 4

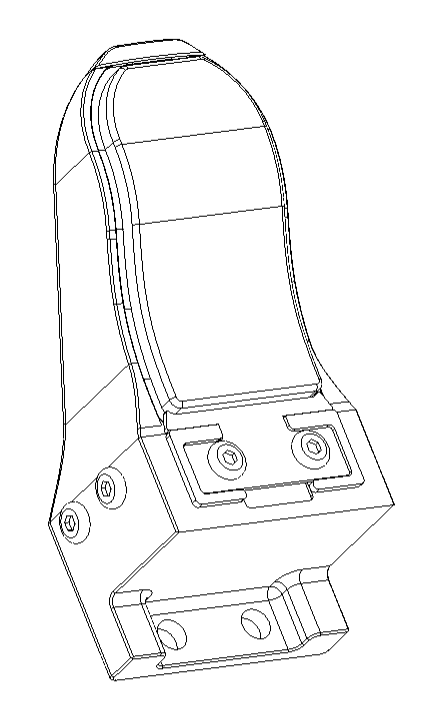

OS Sensor Model.stp

3D Model File・STP Format
