IV. User Interface and Interaction

1. Select Gripper IP

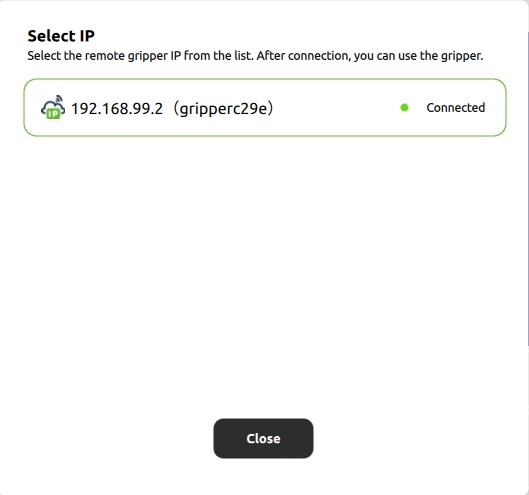

Figure 1: Gripper IP Selection Area

Under the “Change” option in the current Gripper IP Selection Area, you can select all gripper IPs within the local area network to connect to grippers with different IPs.

Sensor Status Indication

: Indicates the device is online

: Indicates the device is offline

: Indicates a sensor error. Hovering the mouse over it will display the error message (sensor config file reading failed).

After unplugging/plugging in the gripper, click to rescan and reconnect to the sensor.

Tactile Information Display

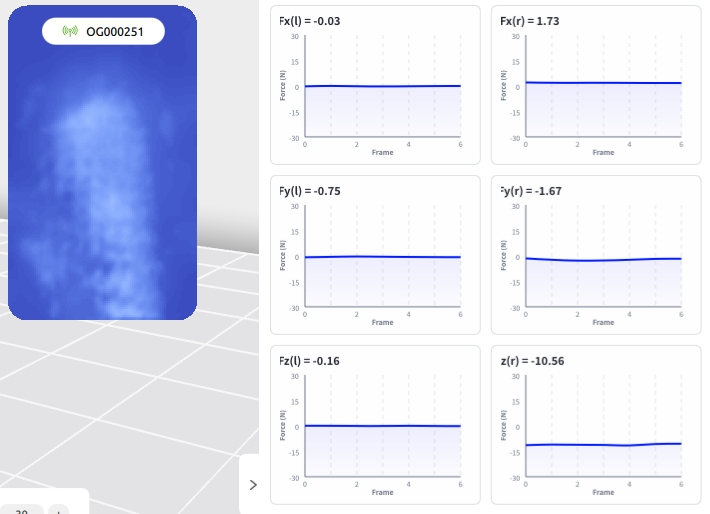

Figure 2: Tactile Information Display

The gripper sensor can detect tactile sensations and generate corresponding images. It can also display multi-dimensional force data in real time, facilitating accurate monitoring and control of the gripper’s status and force-bearing conditions.

When the tactile image information is distorted or sensor data is stuck, click the (Calibration Button) directly below under no-load conditions to recalibrate the sensor and refresh the display.

2. Gripper Sensor Configuration Area

Figure 3: Gripper Configuration Area

Move to Target Position: Click to move the sensor to the target position

Set Maximum Sensor Speed: Adjusts the movement speed of the sensor

Set Maximum Sensor Contact Force: Adjusts the contact force between the sensor and the object

Set Gripper Status Light Color: Click the color button to set the color of the status light

3. Toolbar

Figure 4: Toolbar

Settings: Theme appearance and language type in the settings interface

Help: Opens help documentation and FAQ (Frequently Asked Questions)

About: Displays application information

Minimize: Minimizes the application to the background

Maximize: Maximize the application to occupy the entire screen

Exit: Closes the current application
